In-Depth Analysis of Aluminum Alloy CNC Machining Costs: Full-Chain Control Strategies from Material Selection to Process Optimization
In the field of precision manufacturing, aluminum alloy machining costs are not just financial accounting figures; they are the direct determinants of supply chain competitiveness and product profit margins. For engineers and procurement managers, understanding the underlying logic of cost composition is more effective for long-term cost reduction and efficiency improvement than simply seeking quotations. Aluminum and aluminum alloys have become core structural materials in consumer electronics, new energy vehicles, and industrial automation due to their high specific strength, excellent thermal conductivity, and superior corrosion resistance. However, aluminum is soft, has high adhesiveness, and is prone to deformation. Without precise control over the process route, defect rates can easily skyrocket, thereby invisibly increasing the per-unit allocated cost. This article delves into the key variables affecting aluminum alloy CNC machining costs, providing engineering-based solution comparisons and practical advice to help you build the most cost-effective production model while ensuring ±0.01mm accuracy and Ra0.4μm surface finish.
Breakdown of Core Elements Affecting Aluminum Alloy CNC Machining Costs
To accurately estimate and control costs, one must first break down the cost chain. In addition to obvious material and labor costs, often overlooked "hidden costs" account for a significant portion of the total bill. The following are three core dimensions:
1. Material Alloy and Pre-treatment State
Different aluminum alloy grades vary greatly in machinability, directly determining tool life and machining efficiency.
- 6061-T6: The first choice for general structural components. It has good machinability and is easy to anodize. Its moderate hardness makes it suitable for conventional milling.
- 7075-T6: High-strength aerospace-grade material. It has high hardness (HB95-101) and high cutting forces, which easily wear tools. Although the high machining difficulty increases labor costs, its high specific strength allows for thinner wall designs, reducing overall weight. It is suitable for components with extreme strength requirements.
- 5052/5083: Rust-proof aluminum. It has high adhesiveness, resulting in noticeable tool clogging. It requires very high feed rates and specific tool geometry angles. Its surface gloss is usually lower than that of Series 6 alloys. If a high-gloss surface is required, additional polishing or rotational grinding processes are needed, significantly increasing surface treatment costs.
Practical Advice: At the DFM (Design for Manufacturability) stage, prioritize 6061-T6 unless there are specific structural strength or welding requirements. Avoid using high-hardness alloys for cosmetic parts to balance material costs and machining labor costs.
2. Geometric Complexity and Machine Tool Selection
Machining costs are positively correlated with tool path length, tool change frequency, and clamping frequency. The cost difference between a simple cuboid and a complex housing featuring deep cavities, side holes, and five-axis bevels can be 3-5 times.
- 3-Axis Machining: Suitable for simple contours and flat parts. It has low costs and high equipment utilization.
- 4/5-Axis Machining: Completes multi-face machining in one pass via rotary axes, reducing clamping errors (accumulated tolerance risks) and improving surface consistency. For cosmetic parts, although the hourly rate is higher than 3-axis, it reduces time spent correcting reference deviations caused by multiple clamping and can machine deep cavity structures unreachable by 3-axis. From a lifecycle perspective, the benefits of improved yield rates often outweigh the difference in equipment depreciation.
3. Surface Treatment and Aesthetic Quality Standards
For aluminum alloy cosmetic parts, surface treatment often accounts for 30%-50% of the total cost. Standard gloss Ra value requirements directly affect the process parameters of sandblasting, anodizing, or electroplating.
- Sandblasting: Different grit sizes (e.g., 80# vs 120#) have a minimal impact on cost but determine texture fineness.
- Anodizing: Oxide film thicknesses of 10μm, 20μm, or thicker require different electrolysis times and voltage controls. High-gloss requirements impose extremely high standards on the initial roughness of the base material (needs to be below Ra0.4μm); otherwise, an "orange peel" effect or uneven gloss will occur after anodizing.
- Scratch-Free Control: In mass production, preventing scratches from handling and fixtures requires introducing specialized soft jaws or vacuum suction. This increases fixture costs but reduces the risk of after-sales compensation.
Solution Comparison: Balancing Precision, Aesthetic Quality, and Delivery Lead Time
When facing batch orders, engineers often face conflicts between "high precision" and "low cost." Below is a comparative analysis of two typical technical paths:
Path A: Conventional 5-Axis Finishing + Offline Deburring
: Internal structural components, or non-critical appearance surfaces.
- Advantages: High tool path efficiency and short per-part cycle time.
- Disadvantages: Deburring is mostly manual or done with simple dies, resulting in poor appearance consistency between batches. It is prone to fine scratches or burr residue, which can cause color differences after anodizing.
Path B: High-Precision Milling (Ra≤0.4μm) + Automated Grinding/Polishing + Strict Appearance Inspection
Applicable Scenarios: Components with extremely high visual aesthetic requirements, such as high-end consumer electronics casings, robot joint covers, and semiconductor equipment frames.
- Advantages: By optimizing cutting parameters (such as high-speed milling with large feed rates), a low roughness surface is achieved directly, reducing the need for subsequent grinding. Combined with Automated Optical Inspection (AOI) to eliminate defective products, batch consistency is ensured. This is ShowyMetal's core competitive advantage, where under the cluster scheduling of 72 CNC machines, standardized processes guarantee that every batch has mirror-finished effects without scratches or defects.
- Disadvantages: Extremely high requirements for tool brand and condition monitoring, with high initial equipment investment and technical barriers. If tolerances are not reasonably set (e.g., unnecessarily pursuing ±0.01mm), it will lead to increased tool wear, indirectly increasing tool costs.
Key Insight: For appearance-critical parts, surface quality is the "final gate." Once parts enter the anodizing tank, surface defects are amplified. Therefore, surface quality control during the machining stage is more economical than remediation after oxidation. It is recommended to clearly define the maximum allowable scratch length and depth during the DFM stage to avoid over-processing caused by vague standards.
Practical Key Points: How to Optimize Aluminum Alloy Machining Costs at the Design Stage
Cost reduction should not focus solely on the quote; it should be moved forward to the design stage. The following four engineering actions can significantly optimize the cost model:
1. Reasonable Tolerance Setting
Not all features require ±0.01mm. Follow the 80/20 rule: only 20% of functional features (such as mating surfaces, mounting holes) require strict tolerances, while the remaining 80% of appearance or non-mating surfaces can be relaxed to ±0.05mm or even ±0.1mm. Relaxing tolerances for non-critical dimensions allows the use of tools with larger length-to-diameter ratios or higher cutting speeds, thereby shortening machining time by 10%-15%.
2. Unified R-Radius (Fillet) Radius
The size of the R-radius directly affects tool wear. An excessively small R-radius (e.g., R0.1mm) subjects the tool to extreme forces during machining, prone to tool breakage, and requires frequent tool changes or resharpening, increasing downtime. It is recommended to unify main chamfers to R0.5-R1.0mm at the design stage, which matches most tool radii and facilitates subsequent sandblasting transition.
3. Optimization of Ribs and Draft Angles
Although CNC is not injection molding, reasonable rib design can enhance structural stiffness and reduce machining deformation. Meanwhile, if the part involves subsequent assembly, small draft angles or chamfers help reduce assembly interference risks, reducing rework.
DFM Checklist:
- Do all internal holes leave tool exit space? (Avoid tool breakage caused by deep blind holes)
- Is the minimum wall thickness greater than 0.5mm? (Prevent deformation and thin-wall vibration)
- Are features easy to clamp on one side or both sides? (Reducing flipping counts reduces cumulative datum errors)
- Do appearance surfaces require high gloss? If so, have sharp corners that increase polishing difficulty been avoided?
Acceptance and Quality Control: The Final Defense for Ensuring Batch Consistency
Low cost does not equal low quality. In the mass delivery stage, batch consistency is the highest hidden cost item. If batch color differences or dimensional drift occur, the loss of scrapping the entire batch far exceeds the machining fee.
- Incoming Material Inspection: The chemical composition and condition (T6/T651) of aluminum bars/sheets must have quality certificates to avoid material fluctuations affecting cutting.
- First Article Inspection: Use Coordinate Measuring Machine (CMM) for full-dimension scanning, focusing on monitoring roughness readings (Ra values) of appearance surfaces, ensuring they meet the Ra0.4μm or specified standard.
- In-Process Patrol Inspection: During high-gloss surface machining, perform white cloth wipe checks and visual inspections at regular intervals to ensure no oil stains or fingerprints. In ShowyMetal's production process, independent optical measurement and roughness meter stations are equipped to intercept minor deviations during the process.
- Surface Treatment Coordination: After CNC machining, surfaces should be immediately cleaned and protected to prevent corrosion or mechanical damage during transit to the anodizing workshop. Establishing "white glove" handover standards is key to scratch-free delivery.

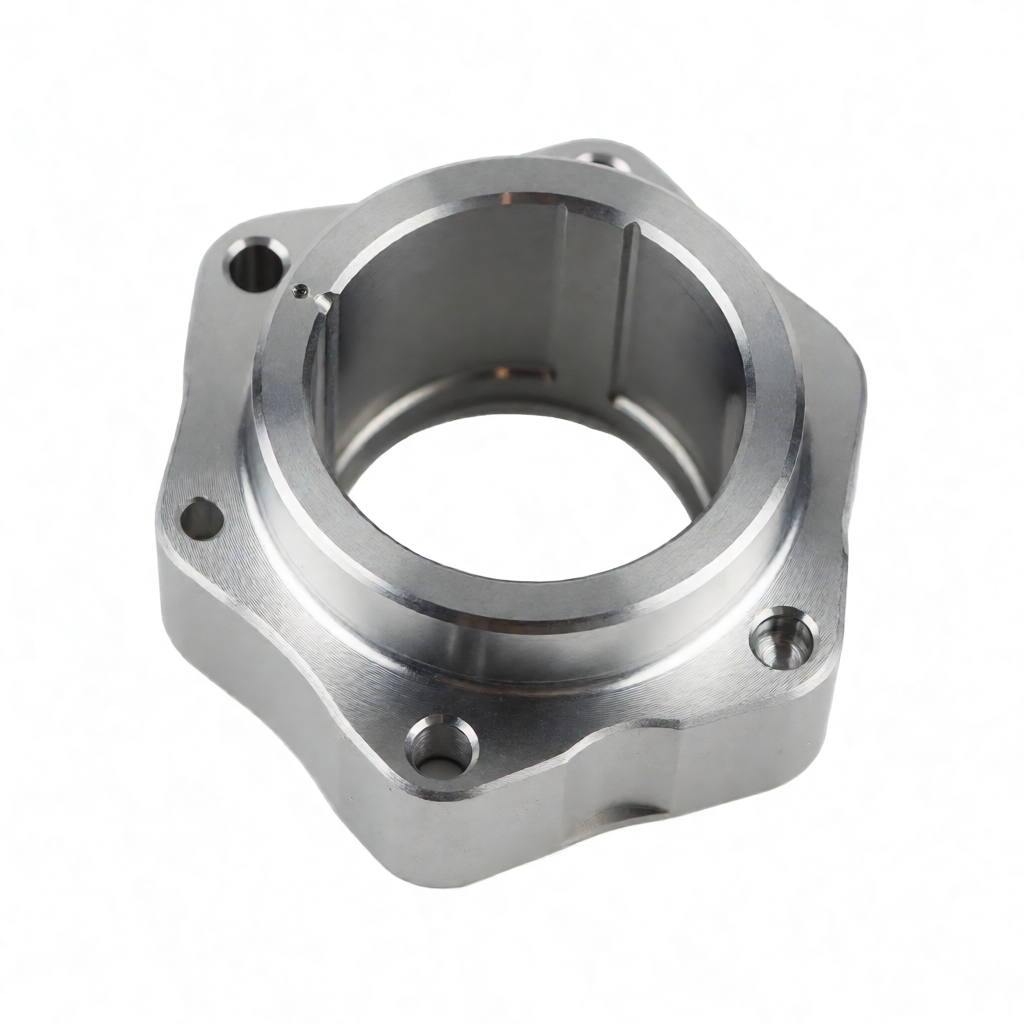

Related Services: One-Stop Machining and Surface Treatment of Aluminum Alloy Cosmetics
FAQ: Common Misconceptions About Aluminum Alloy Machining Costs
Q1: Why is there a huge price difference among different suppliers for the same drawing?
A: The main differences lie in the selection of process routes and the hidden scrap rate. Low-cost suppliers may use inferior tools, causing surface roughness to exceed standards, requiring additional manual polishing, or having unreasonable clamping schemes that lead to frequent flipping of the part, implicitly increasing man-hours. Furthermore, if cosmetic parts lack effective scratch protection management, the risk of after-sales compensation is transferred to the buyer. The cost of high-reliability suppliers includes strict DFM optimization and standardized jigs.
Q2: Should mirror molds be considered instead of CNC for small-batch prototyping?
A: For aluminum alloys, CNC prototyping is generally more cost-effective than tooling, especially when design iterations are required. Tooling involves steel consumption, EDM, and polishing, resulting in high fixed costs, and modifying the mold is costly. CNC can directly machine aluminum blocks without involving steel, making it ideal for multi-round design verification. When volume reaches thousands of units, the cost advantage of injection molding (which must address thermal conductivity/insulation issues for aluminum parts, though CNC is typically still used for aluminum) or casting becomes apparent.
Q3: How can I determine if my part is suitable for Swiss-type lathe machining?
A: Swiss-type lathes are primarily used for shaft-type parts with high length-to-diameter ratios (such as sensor probes and medical catheters). If your part has thin walls, a length-to-diameter ratio greater than 5:1, and extremely high rigidity requirements, a Swiss-type lathe is the only feasible option. However, for flat cosmetic housings or complex 3D curved surfaces, a 3/4/5-axis machining center must be used. Incorrectly choosing the equipment type will make machining impossible.
Q4: What steps are mainly involved in the cost of a High-Gloss (Mirror) Finish?
A: It mainly includes three parts: 1. The high wear cost of finishing tools; 2. Intermediate grinding/polishing processes (if CNC directly reaches Ra0.4μm, it is extremely difficult, usually requiring subsequent precision grinding); 3. Protective packaging. High-gloss surfaces are highly sensitive to fine dust and fingerprints, requiring dedicated non-woven fabric or bubble film for independent packaging, which increases logistics costs.
Q5: Is a lead time of 15-25 days reasonable for batch aluminum parts?
A: It is very reasonable and competitive. In the traditional model, prototyping takes 7-10 days + tool/jig making takes 5 days + batch production takes 10-15 days + surface treatment takes 5 days, with the total cycle often exceeding 30 days. By using parallel engineering (DFM and programming in parallel), cluster scheduling of 72 machines, and optimized surface treatment pipelines, compressing it to 15-25 days indicates efficient supply chain responsiveness, significantly shortening the customer's TTM (Time to Market).
Conclusion
Controlling the cost of aluminum alloy machining is essentially about eliminating process redundancy and investing in cosmetic quality. It is not a simple arithmetic problem, but a systemic engineering task. By selecting materials like 6061, reasonably relaxing non-critical tolerances, adopting 5-axis machining centers with high gloss control capabilities, and strictly implementing "scratch-free" whole-process control, enterprises can achieve an optimal cost balance while guaranteeing ±0.01mm precision and high-end cosmetic quality.
